Spicer Consulting, a world-class brand in magnetic field cancelling solutions, has launched a new product called SC24 Plus intelligent system, not only does it have a powerful function to actively cancel EMI magnetic field interference but also has been upgraded to a comprehensive environmental intelligent monitoring system that meets your dual needs for environmental measurement and improvement.

Features

The magnetic field sensor measures the resulting field and real time negative feedback reduces the ambient field by the loop gain of the system.

●同时解决DC直流电与AC交流电造成的EMI干扰问题
●最高可消除5000 Hz磁场频率
●小于100微秒(µs)的超高速动反应时间
●可選擇以 納特斯拉(nT)或毫高斯(mG) 為單位
●即时环境异常警报功能，维持重要设备正常运作
●高弹性客制化，实验室空间建置及单一设备防护皆适用

Monitoring system continuously measures Magnetic fields, Floor vibration in 3 axes, Acoustic levels at 2kHz, and Temperature/Humidity at 1Hz.

●Continuous 24/7 monitoring.
●Compares environment to specifications with PASS/FAIL indication. Sends signal to a traffic light or sends email if offline or out-of-spec.
●Up to 14 different graphs may be displayed giving simultaneous display of the data as it is.

Specifications

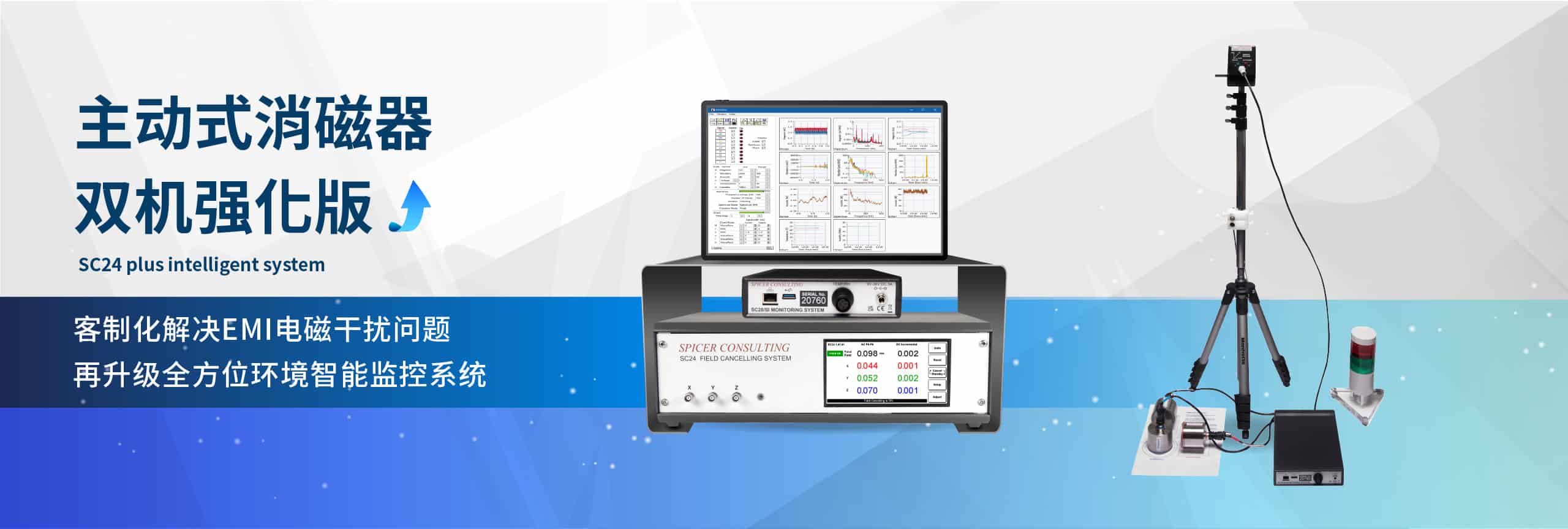

● Model Name：SC24 Plus intelligent system
●Bandwidth AC 2.5 Hz - 5000 Hz
●Bandwidth DC - 5000 Hz
●Response Time：Adapts to field changes within 100 μs
●Sensor Interface Inputs：MAG(VIBX, VIBY, VIBZ)、MIC、AUX、TEMP、RH
●Monitoring: 24/7
●Report：Up to 14 different graphs may be displayed giving simultaneous display of the data as it is acquired
●Interface：Touch screen user interface
●Remote Control：Yes

Product Installation

●Room Installation options

—Installation for TEMs and new Lab Builds
—Basic Installation for TEMs and SEMs

●Frame-mounted Helmholtz cable option for SEM
